Catching layout bugs before your eyes do: a render-time QA gate for generated visuals
Shipped

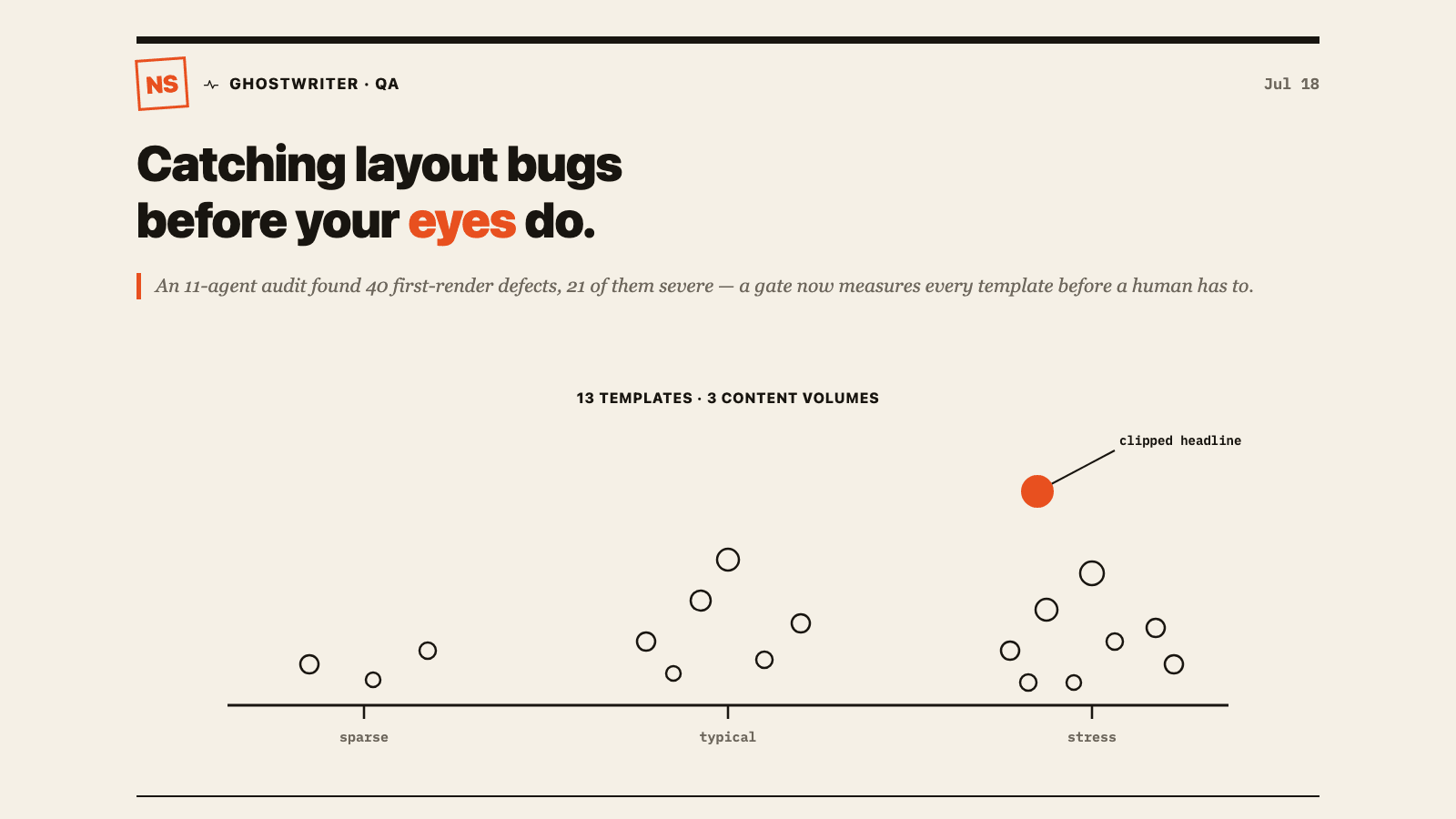

I maintain a skill that turns a handful of bullet points into a LinkedIn-ready image: an HTML/CSS template gets filled in and rendered to a PNG through a headless browser. The same release also added a publish log and a self-repairing scheduler for a separate part of that skill, but the fix worth teaching is what happened to the card renderer. An 11-agent audit across all 13 card templates at sparse, typical, and stress content volumes turned up 40 first-render defects, 21 of them severe: clipped headlines, ellipses firing where nobody wanted truncation, dead bands of empty space. The root cause was simple: every template had been eyeballed with one content shape in mind, and nothing ever measured what rendered. The fix was a lint that runs at render time and asserts on the live DOM, paired with CSS that adapts a layout’s proportions to whatever content count it’s actually carrying. That combination is the technique this post walks through, generalized so it works on any HTML-to-image pipeline, not just mine.
Why reviewing the template isn’t enough
A card template looks fine in the editor because you’re reading markup, not a render. The moment real content lands in it, the browser does layout math you didn’t picture: a 40-character title becomes 60 characters and now it wraps to a third line, a 3-step list becomes a 7-step list and now something is 30 pixels below the fold. Functional and unit tests don’t see any of this, because they check behavior, not what a browser painted onto a page (Percy). If nothing measures the rendered box model, a broken card reaches a human for the first time when it’s already about to ship.
The fix is to treat the render itself as a test subject: load the real page in a real browser, measure the elements that matter, and fail loudly before a screenshot goes anywhere.
Build a card that has to survive variable content
Here’s a stripped-down version of the pattern (not the production template, just the shape of it): a fixed-size frame holding a variable number of “step” blocks, each with a title and a detail line.
/* style.css */
#canvas {
width: 800px;
height: 500px;
padding: 40px;
box-sizing: border-box;
display: flex;
flex-direction: column;
justify-content: center;
gap: 20px;
background: #10141c;
font-family: -apple-system, sans-serif;
overflow: hidden; /* content that doesn't fit gets clipped, not reflowed */
}
.step { display: flex; flex-direction: column; gap: 4px; }
.step .title {
color: #fff;
font-size: 32px;
font-weight: 700;
white-space: nowrap;
overflow: hidden;
text-overflow: ellipsis;
}
.step .detail { color: #9aa4b2; font-size: 20px; }
# make_card.py
import sys
from pathlib import Path
CSS = Path(__file__).parent / "style.css"
TEMPLATE = """<!DOCTYPE html>
<html><head><style>{css}</style></head>
<body><div id="canvas">{steps}</div></body></html>"""
STEP = """<div class="step"><div class="title">{title}</div><div class="detail">{detail}</div></div>"""
def build(steps: list[tuple[str, str]]) -> str:
css = CSS.read_text()
body = "\n".join(STEP.format(title=t, detail=d) for t, d in steps)
return TEMPLATE.format(css=css, steps=body)
if __name__ == "__main__":
out = Path(sys.argv[1])
steps = [
("Clone the repo", "git clone the project"),
("Install deps", "pip install -r requirements.txt"),
("Run the build", "make build"),
]
out.write_text(build(steps))
print(f"wrote {out}")
A fixed 800x500 frame with a variable list dropped into it is exactly the shape that breaks: it looks great with three steps and quietly overflows with seven.
Give the layout room to adapt
Rather than pick one font size and hope every future caller respects it, let the CSS itself react to how many .step elements showed up. The :has() relational pseudo-class matches an element based on what’s inside it, so a container can style itself differently depending on its own children (MDN):
/* count-adaptive: exactly 3 steps get more room to breathe */
#canvas:has(> .step:nth-child(3):last-child) { gap: 36px; }
#canvas:has(> .step:nth-child(3):last-child) .title { font-size: 40px; }
/* count-adaptive: 5 or more steps compress to keep everything on-frame */
#canvas:has(> .step:nth-child(5)) { gap: 10px; }
#canvas:has(> .step:nth-child(5)) .title { font-size: 24px; }
#canvas:has(> .step:nth-child(5)) .detail { font-size: 16px; }
A sparse 3-step card scales up and fills the frame instead of floating in whitespace; a dense 5+ step card compresses to stay on-frame instead of overflowing. One template, no per-caller tuning.
Build the render-time lint
The CSS above narrows the failure modes, but it doesn’t guarantee anything, so the lint is what verifies a given render. It loads the page in Playwright and reads real box-model numbers off the live DOM with page.evaluate (Playwright docs):
# lint.py
import sys
from playwright.sync_api import sync_playwright
STEP_BUDGET = (3, 5) # inclusive min/max steps a card is allowed to carry
LINT_JS = """
() => {
const findings = [];
const canvas = document.getElementById('canvas');
const cRect = canvas.getBoundingClientRect();
// 1. clip-overflow: anything escaping the frame.
for (const el of canvas.querySelectorAll('*')) {
const r = el.getBoundingClientRect();
if (r.width === 0 && r.height === 0) continue;
if (r.bottom > cRect.bottom + 1 || r.right > cRect.right + 1) {
findings.push(['FAIL', 'clip-overflow',
el.className + ' extends past the frame (bottom ' + Math.round(r.bottom) +
'px vs frame ' + Math.round(cRect.bottom) + 'px)']);
}
}
// 2. ellipsis-fired: truncation actually happened.
for (const el of canvas.querySelectorAll('.title')) {
if (el.scrollWidth > el.clientWidth + 1) {
findings.push(['FAIL', 'ellipsis-fired',
'"' + el.textContent + '" is truncated (' + el.scrollWidth + 'px of text in ' +
el.clientWidth + 'px)']);
}
}
findings.push(['INFO', 'step-count', canvas.querySelectorAll('.step').length + ' steps']);
return findings;
}
"""
def lint(html_path: str) -> list[tuple[str, str, str]]:
with sync_playwright() as p:
browser = p.chromium.launch()
page = browser.new_page(viewport={"width": 900, "height": 600})
page.goto(f"file://{html_path}")
findings = page.evaluate(LINT_JS)
browser.close()
lo, hi = STEP_BUDGET
count = next(int(m.split()[0]) for (_, code, m) in findings if code == "step-count")
if not (lo <= count <= hi):
findings.append(("FAIL", "count-budget", f"{count} steps, budget is {lo}-{hi}"))
return findings
if __name__ == "__main__":
findings = lint(sys.argv[1])
for level, code, message in findings:
print(f"{level} {code}: {message}")
sys.exit(2 if any(level == "FAIL" for level, _, _ in findings) else 0)
The scrollWidth > clientWidth check is the standard way to prove an ellipsis fired rather than just being legal CSS that never triggers: scrollWidth is how wide the content would need to be to show it all, clientWidth is what it got (MDN).
Run it against a good, a sparse, and a stressed card
A 3-step card renders and lints clean:
$ python make_card.py good.html && python lint.py good.html
wrote good.html
INFO step-count: 3 steps
Edit the steps list in make_card.py down to 2 entries and rerun the same two commands. The count budget catches it before anyone has to notice the card looks thin:
INFO step-count: 2 steps
FAIL count-budget: 2 steps, budget is 3-5
Grow the list back out to 7 entries, with one title long enough to overflow (“Configure the deeply nested production environment variable file”), and the lint catches the truncation directly, quoting the exact text that got cut:
FAIL ellipsis-fired: "Configure the deeply nested production environment variable file" is truncated (744px of text in 720px)
INFO step-count: 7 steps
FAIL count-budget: 7 steps, budget is 3-5
Every one of those lines is something a human would otherwise have had to spot by squinting at a PNG.
Gotchas
:has(> .step:nth-child(3)) without :last-child fires on every card with 3 or more steps, not exactly 3. nth-child(3) only asserts that a 3rd child exists; it says nothing about whether a 4th or 5th one follows. I proved this to myself in a scratch page: a 5-step card with the anchor-less rule still painted its 3rd title red, because the 5-step card also has a 3rd child. Anchoring with :nth-child(3):last-child is the fix: it means “exactly 3, and that one is the last.”
A lint that can crash your render pipeline is worse than no lint. The moment render-time checks run inside the same process that produces the shippable output, a bug in the lint itself (a null element, an unexpected DOM shape) can take down every render, not just the bad ones. Wrap the lint call so a lint exception degrades to a logged warning, never a failed render; the checks should only ever add information, not a new way to go down.
Count-adaptive rules fix font size and spacing, not structural imbalance. Scaling text up or down for 3 versus 5 items works fine until the count lands somewhere a grid can’t distribute evenly, like exactly 3 tiles in a 2-column layout: one tile ends up alone on its own row, off-center. That case needs an explicit structural rule (span the odd tile across the full row), not just a smaller font. Count-adaptive CSS has to cover both the aesthetic scaling and the structural edge cases, or the “edge count” just moves somewhere new.
Sources
- MDN: :has() — the relational pseudo-class semantics and combinator syntax used for count-adaptive rules
- Playwright: Locator.boundingBox() — measuring live DOM geometry from inside a headless browser
- MDN: Element.scrollWidth — the scrollWidth/clientWidth comparison used to detect a fired ellipsis
- Percy: What is visual regression testing? — why appearance bugs slip past tests that only check behavior
